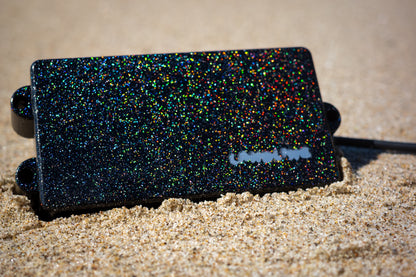

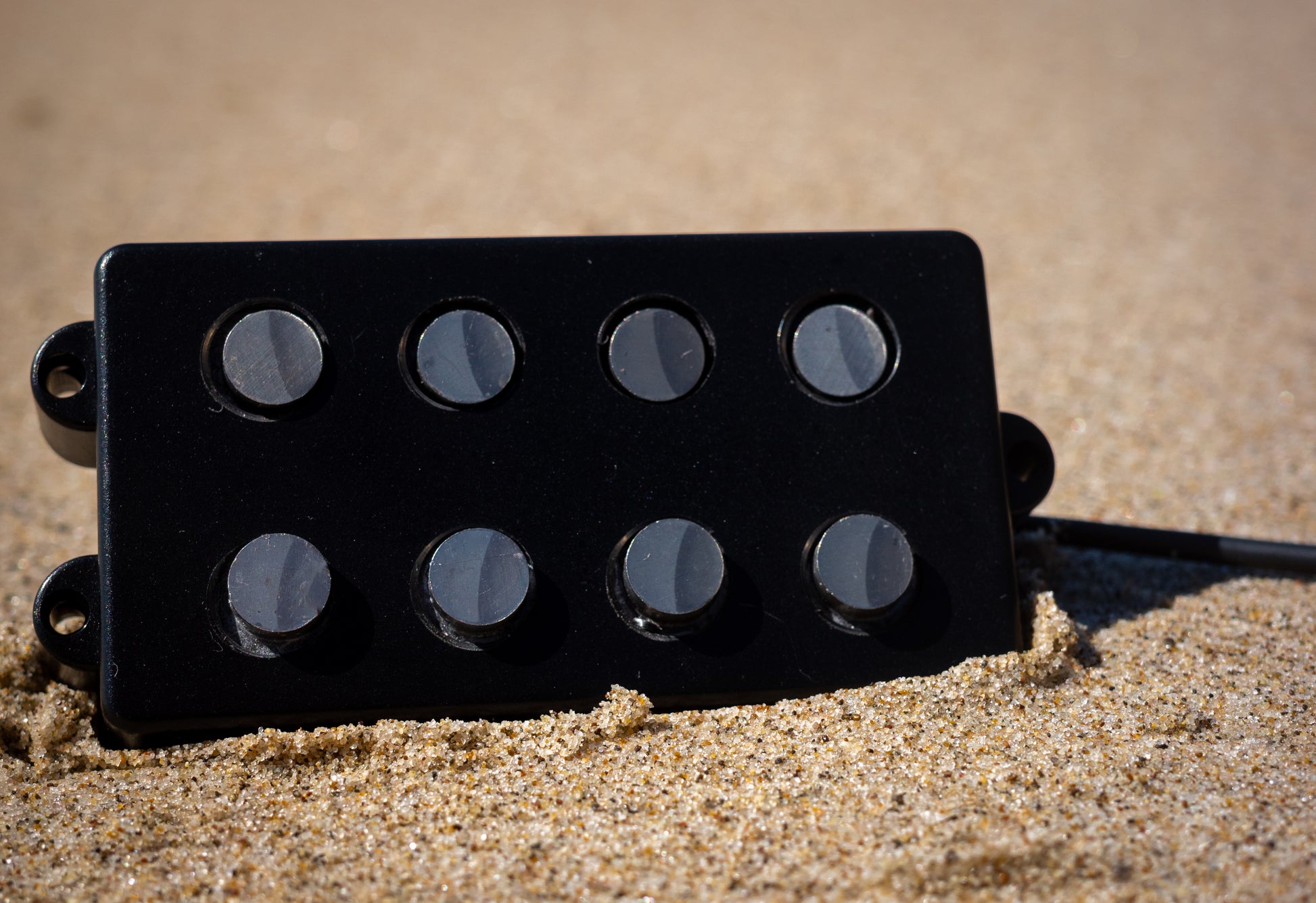

ABYSSAL

ABYSSAL

Bottom Feeder

REGULAR PRICE $115.00 USD
REGULAR PRICE SALE PRICE $115.00 USD
SALE SOLD OUT

Abyssal channels the unmistakable depth of the legendary 1970s design that shaped modern humbucking bass tone. At its core are custom oversized Alnico 5 rod magnets, delivering massive low-end, aggressive midrange punch, and razor-sharp articulation with exceptional note definition across the full frequency range. The result is the signature growl, snap, and dynamic response that made this pickup iconic.

A four-conductor cable provides complete wiring flexibility for series, parallel, and coil-split configurations with passive or active electronics, unlocking tones from thick and thunderous to clear and cutting.

Color: BLACK
VIEW FULL DETAILS
  • SPECS

    ALNICO 5

    42 AWG POLY

    LACQUER & WAX POTTED

    4-CONDUCTOR WIRE

    POLE SPACING: 57mm

  • SERIES

    DC RESISTANCE: ~7.5kΩ

    NORTH START: BLACK

    NORTH FINISH: WHITE
    SOUTH START: GREEN
    SOUTH FINISH: RED
    BARE: GROUND

  • PARALLEL

    DC RESISTANCE: ~1.9kΩ

    NORTH START: BLACK

    NORTH FINISH: WHITE
    SOUTH START: GREEN
    SOUTH FINISH: RED
    BARE: GROUND

DC Resistance readings may vary due to a multitude of variables, including, but not limited to, ambient temperature, metering equipment calibration, and different wire batches. Listed DCR values are approximations based on average readings.
