BEACONS

Chime Through the Undertow

$125.00 USD

SALE SOLD OUT

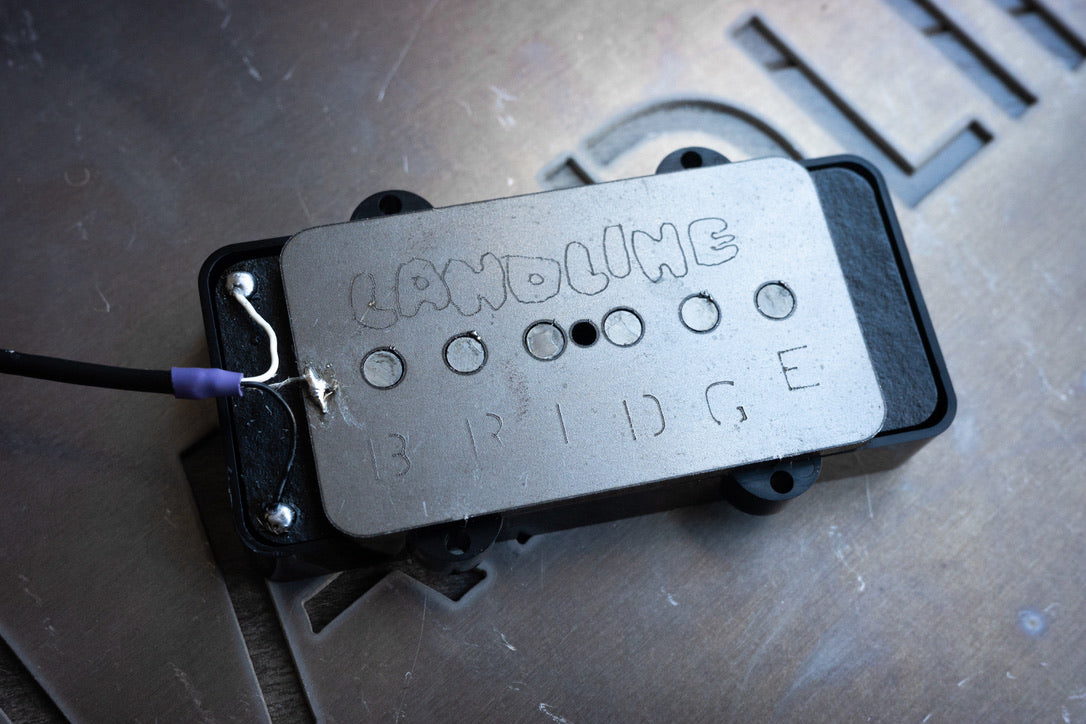

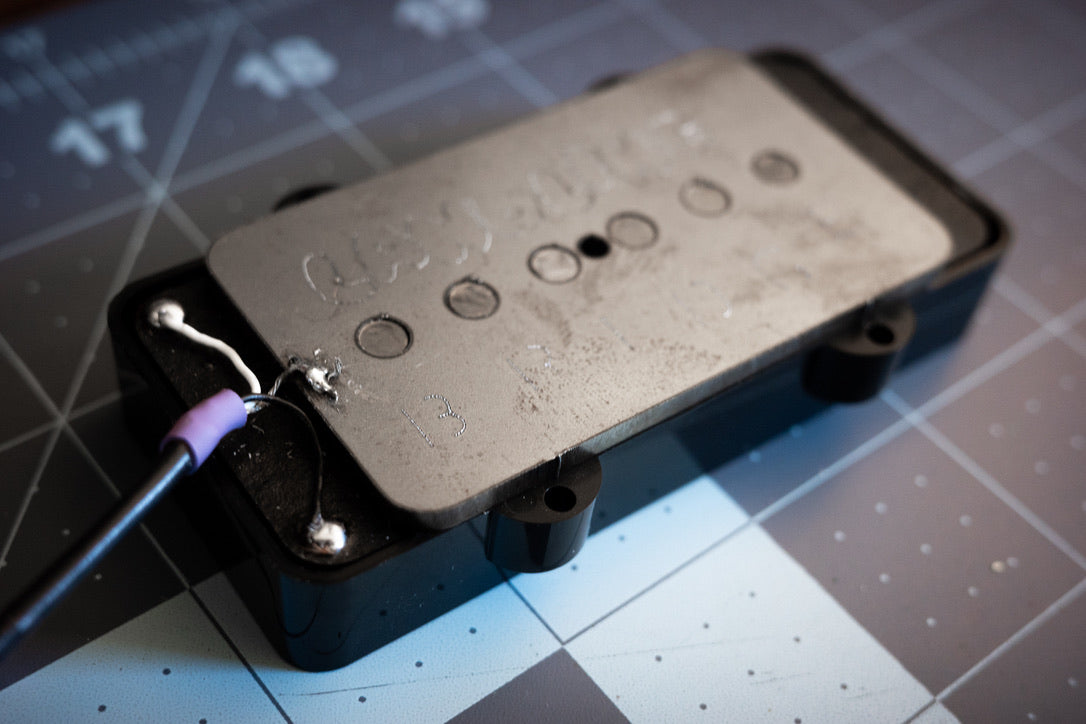

Beacons modifies the Jazzmaster® pickup platform with an oversized Travis Bean® inspired steel substructure to deliver fuller and tighter lows, ringing mids, and clanging highs, all with the openness and responsiveness of a vintage JM pickup. Beacons is precision-designed for high-fidelity articulation from the cleanest to highest gain applications. Reverse-Wound, Reverse-Polarity for hum-cancelling in the middle position.

COLOR: BLACK

POSITION BRIDGE NECK SET

QUANTITY

VIEW FULL DETAILS

SPECS
ALNICO 5
42 AWG POLY
LACQUER & WAX POTTED
MODERN 2-CONDUCTOR WIRE
POLE SPACING: 51mm
BRIDGE
DC RESISTANCE: ~7.5kΩ
POLARITY: SOUTH
WIND: CCW
HOT: WHITE
GROUND: BLACK
PLATE: BARE
NECK
DC RESISTANCE: ~7.0kΩ
POLARITY: NORTH
WIND: CW
HOT: WHITE
GROUND: BLACK
PLATE: BARE

DC Resistance readings may vary due to a multitude of variables, including, but not limited to, ambient temperature, metering equipment calibration, and different wire batches. Listed DCR values are approximations based on average readings.
