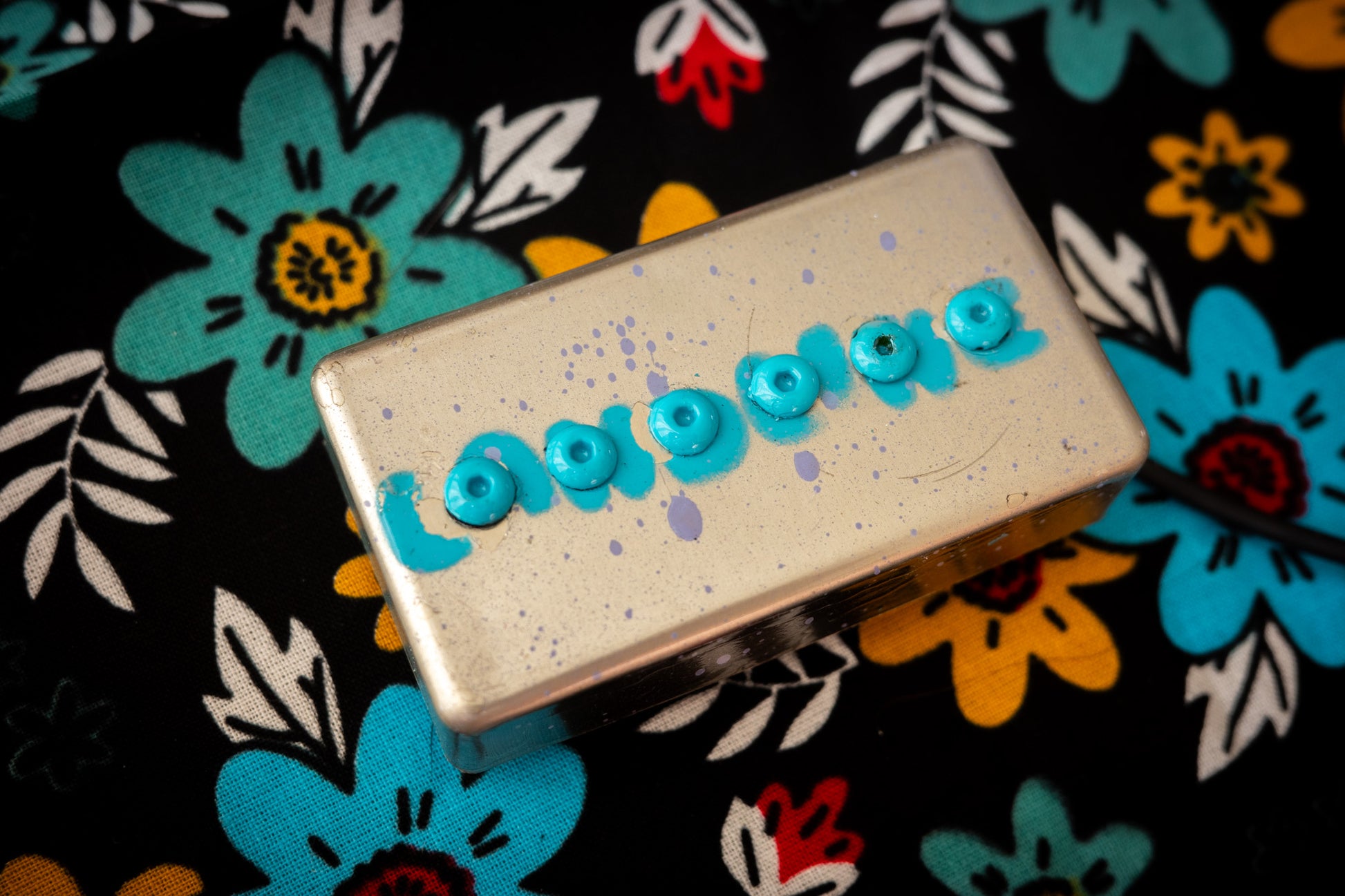

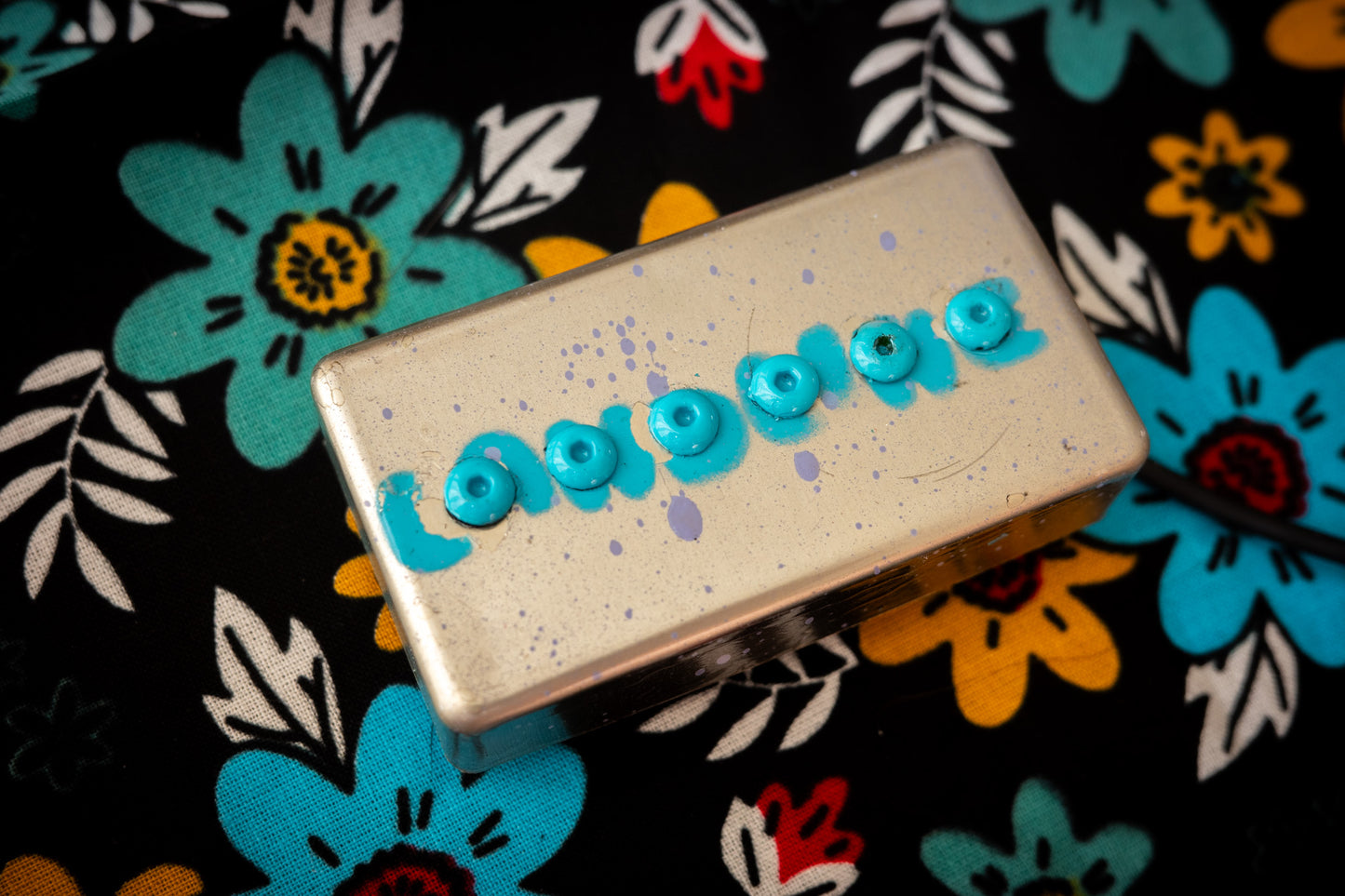

PEELERS (CHROMATIC BRIDGE)

PEELERS (CHROMATIC BRIDGE)

Compact Hi-Fi

$145.00 USD
$145.00 USD
SALE SOLD OUT
Peelers deliver the bite and dynamics of a steel-reinforced P-90 in a humbucker footprint. Designed for easy drop-in installation, they offer quick attack, detailed highs, and a lively midrange presence. Perfect for players who want the raw midrange character of a P-90 with the brash and bold fidelity of a Travis Bean® style pickup. Reverse-Wound, Reverse-Polarity for hum-cancelling in the middle position.

Due to the hand-painted nature of this item, slight irregularities and imperfections may be present.
VIEW FULL DETAILS

  • SPECS

    SMOOTH POLISHED ALNICO 5

    44 AWG POLY

    LACQUER & WAX POTTED

    MODERN 2-CONDUCTOR WIRE

    POLE SPACING: 50mm

  • BRIDGE

    DC RESISTANCE: ~10.5kΩ

    POLARITY: SOUTH

    WIND: CCW

    HOT: WHITE

    GROUND: BLACK

    PLATE: BARE

  • NECK

    DC RESISTANCE: ~9.9kΩ

    POLARITY: NORTH

    WIND: CW

    HOT: WHITE

    GROUND: BLACK

    PLATE: BARE
DC Resistance readings may vary due to a multitude of variables, including, but not limited to, ambient temperature, metering equipment calibration, and different wire batches. Listed DCR values are approximations based on average readings.
